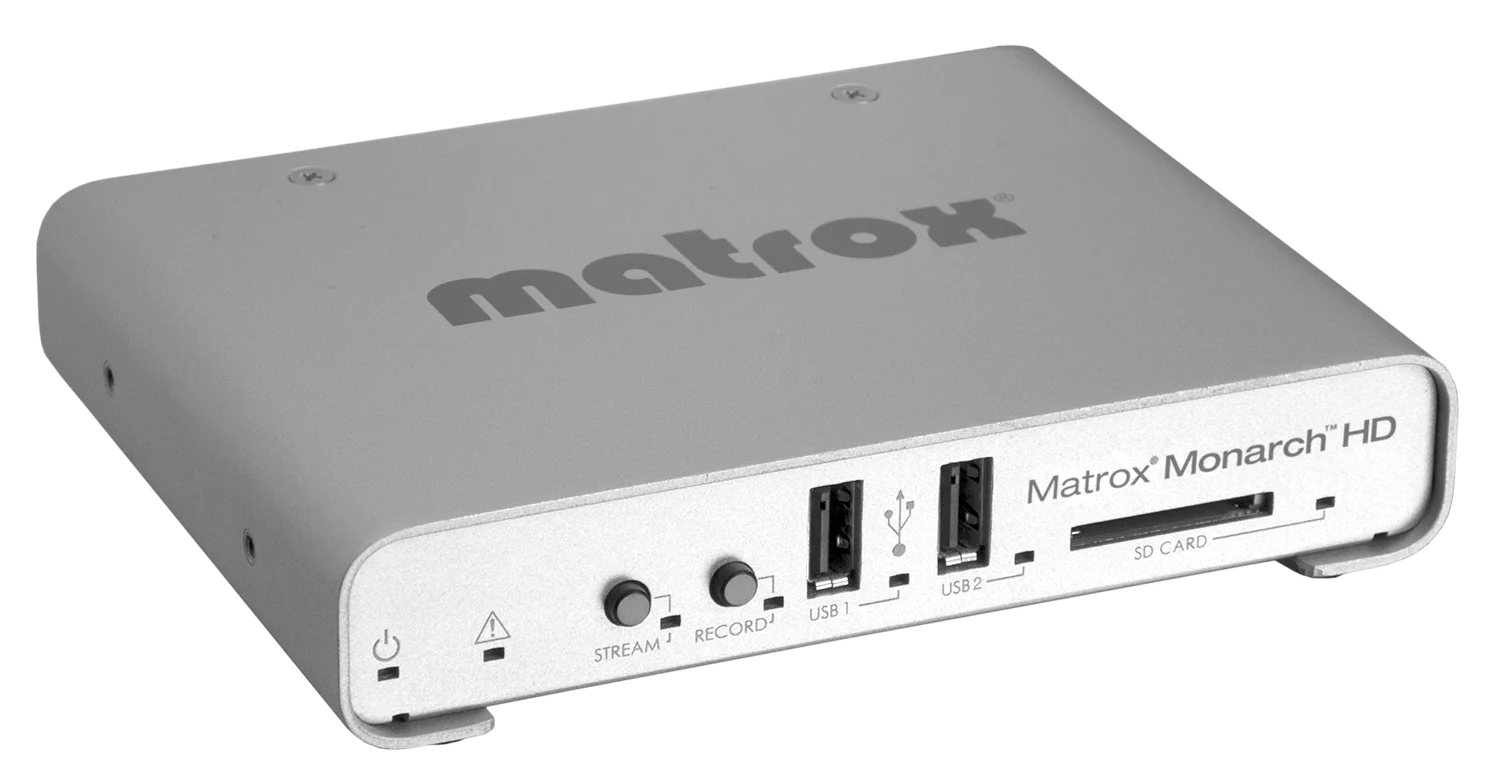

Matrox Monarch HD

Click here to purchase the Matrox Monarch HD

The Matrox Monarch HD is a small and easy-to-use video streaming and recording appliance.  It allows for the simultaneous streaming of a live event and the recording of a master quality version for post-event editing.  Using any HDMI input source such as a camera or a switcher, the Matrox Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols.  While encoding the video for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 or MOV file to an SD card, a USB drive, or a network-mapped drive.  Matrox Monarch HD is remotely controllable using any computer or mobile device with a web browser.

Matrox Monarch HD supports sharing the H.264 encoder between the streaming and recording processes so recording quality and upload bandwidth are independent of each other.  A typical setting will let a user record a master quality file at 25 Mbps while simultaneously streaming at a bitrate of 5 Mbps.  As a dedicated streaming or recording appliance, Matrox Monarch HD can stream at bitrates up to 20 Mbps or record at bitrates as high as 30 Mbps.

Matrox Monarch HD is powerful and robust, with simple, one touch stream and record pushbuttons, low power consumption, a locking power connector, and a fanless design.  Matrox Monarch HD’s HDMI output makes it easy to monitor what you are streaming and recording, regardless of whether the signal is received from a camera, a switcher, a signal convertor, or a computer.  All eight channels of embedded audio can be passed from the HDMI input to HDMI output ports. Two channels of analog audio input with loopout are also available via 1/8" stereo jacks. Its design allows Matrox Monarch HD to be just as easily located on a desktop as in a rack–up to three units can fit in a single 1RU tray. The storage and button controls are conveniently located on the front of the unit while the power and I/O ports are found at the back.

Matrox Monarch HD lets you select from a variety of recording media types. Use an SD card when a compact portable solution is required or a USB drive for long form recording. Alternately, a system drive on a computer found on the network may prove extremely useful if multiple individuals need to access the footage.  The Monarch HD provides users the ability to create split files while recording. This is particularly useful when recording for extended periods of time. The user can enter a file length and Monarch HD will automatically split your recording into separate files, switching to a new file without losing a single frame. When loaded on an NLE timeline sequentially, they will playback seamlessly and can be exported as a single contiguous file.


For more information please contact Matt Drabick at or call 919 790 5488.
